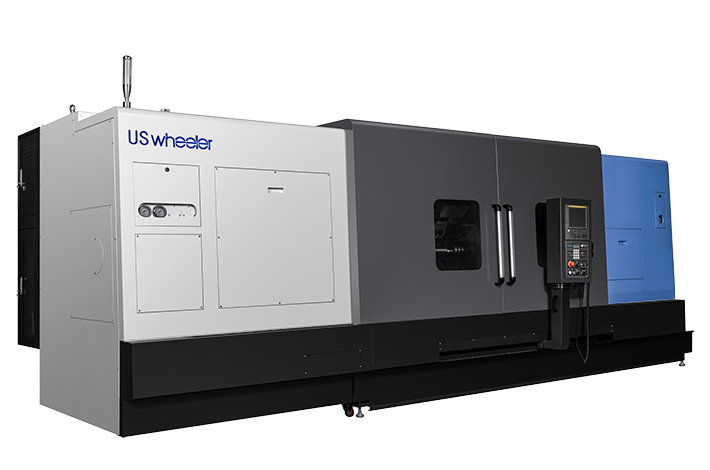

LT 400 L
Characteristics
| Hydraulic Motor | Box way |
 |  |
| TURRET | XZ |
Model variations
| 2160 |
 |
| Category | Item | Specification |
| Capacity | Swing over bed[mm] | 790 |
| Workpiece | Workpiece diameter[mm] | Ø600 |
| Workpiece length[mm] | 2000 | |
| Chuck | Chuck size(S1)[in] | 15 |
| Turning spindle 1(S1) | Barworking dia.[mm] | 115 |
| Tool post 1(T1) | No. of tool stations[ea] | 12 |
| Travels | Stroke X[mm] | 340 |
| Stroke Z[mm] | 2100 | |
| Rapid traverse(X)[m/min] | 12 | |
| Rapid traverse(Z)[m/min] | 12 | |
| Category | CNC brand | Fanuc Siemens |
| CNC system | 828D/0i-TF | |
| Origin | Mainland China |
Turning spindle 1(S1)
| Spindle name | S1-1 | Turning spindle no. 1 max. speed[r/min] | 2000 | Bearing inner dia.(front)[mm] | Interface(S1) | A2-11Available chucks | Turning spindle 1 thru hole dia.[mm] | 127 | Output[kW] | 15！18.5 | Torque[Nm] | Turning spindle 1 transmission |
Tool post #1(T1)
| Name | Tool holder | Tool shank | Boring bar | 60 | Position | 12 | Index time | Speed | Power | Torque |
Guide way
| Axis | X | Z | |
| Guide way | Box way | Box way | |
| Qty | 2 | 2 |
Photo gallery
Not responsible for misprints or data errors. Actual product appearance may differ.
